Forklift is an industrial handing vehicle, which refers to various wheeled handing vehicles for loading and unloading, stacking and short-distance transportation of palletized goods. Forlift are widely used in ports, stations, airports, freight yards, factory workshops, warehouses, distribution centers, etc. Loading, unloading and handling of palletized goods in cabinets, carriages and containers is an indispensable equipment in pallet transportation and container transportation.

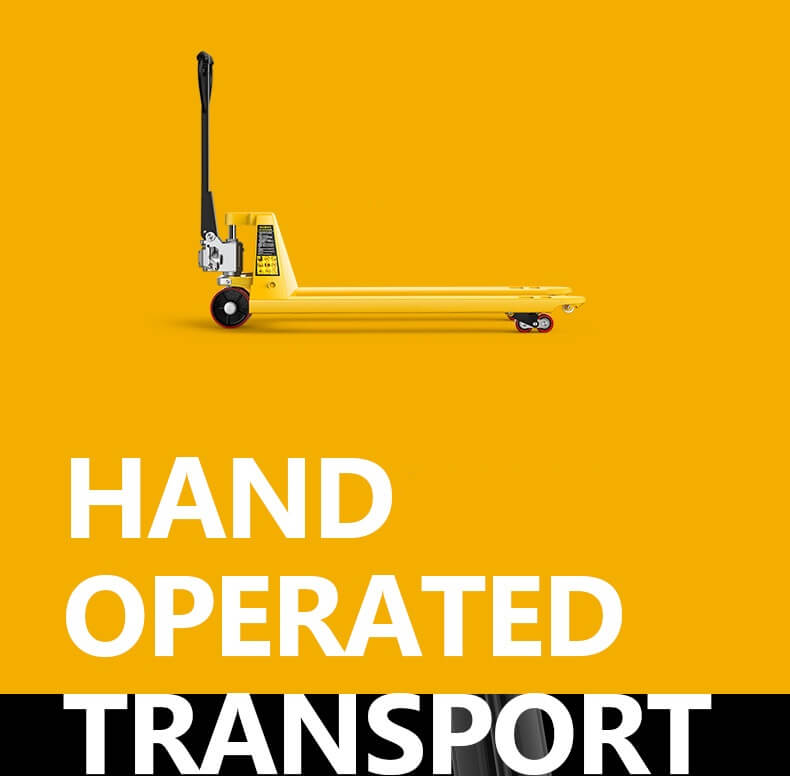

Manual Hydraulic Forklift
Suitable for a variety of places, the right-hand man for loading and unloading

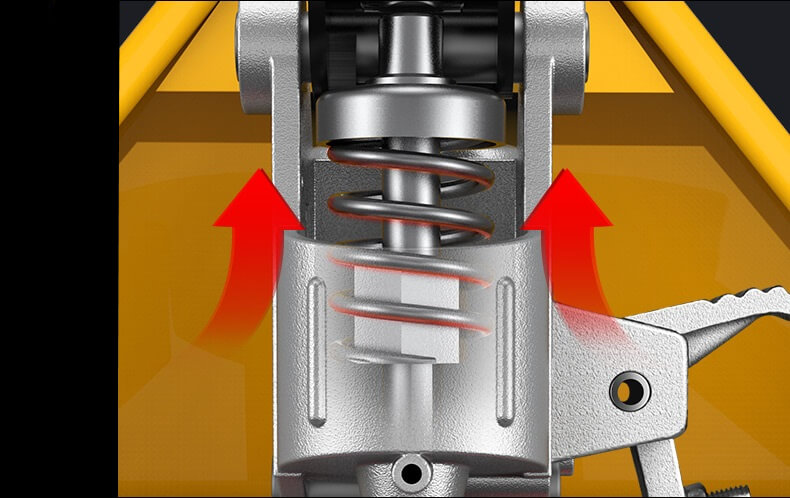

Bold stainless steel spring
Easy rebound, long life

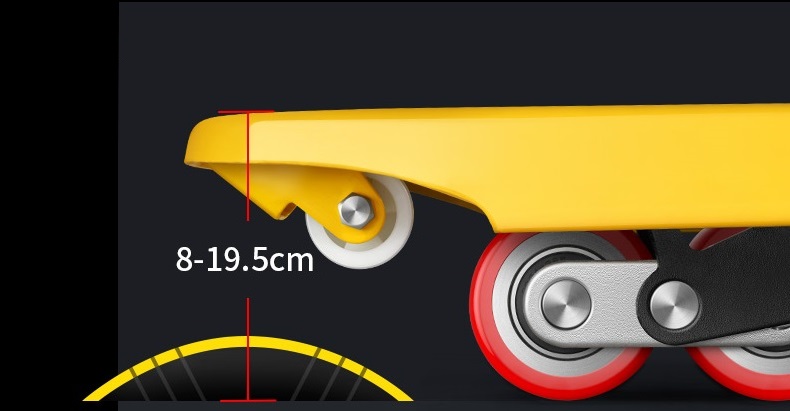

8-19.5cm lifting height, suitable for various ground conditions

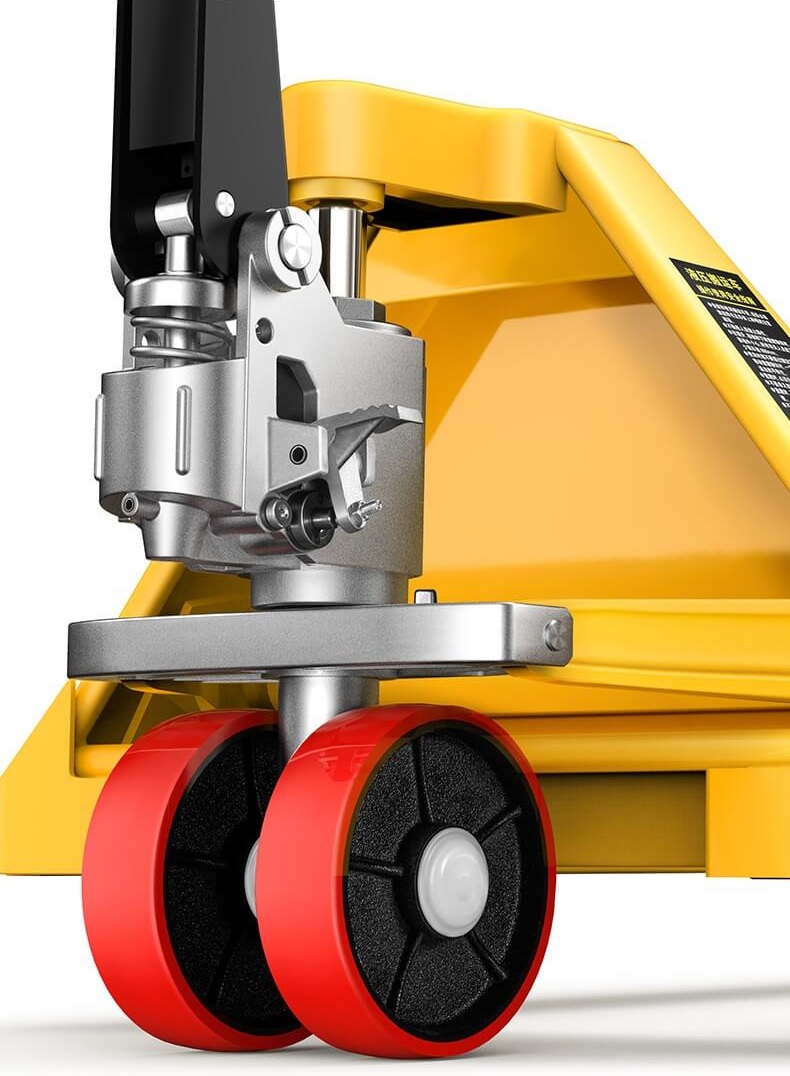

Bold and widened two-wheel combination to ensure smooth and stable driving, long-term use as new

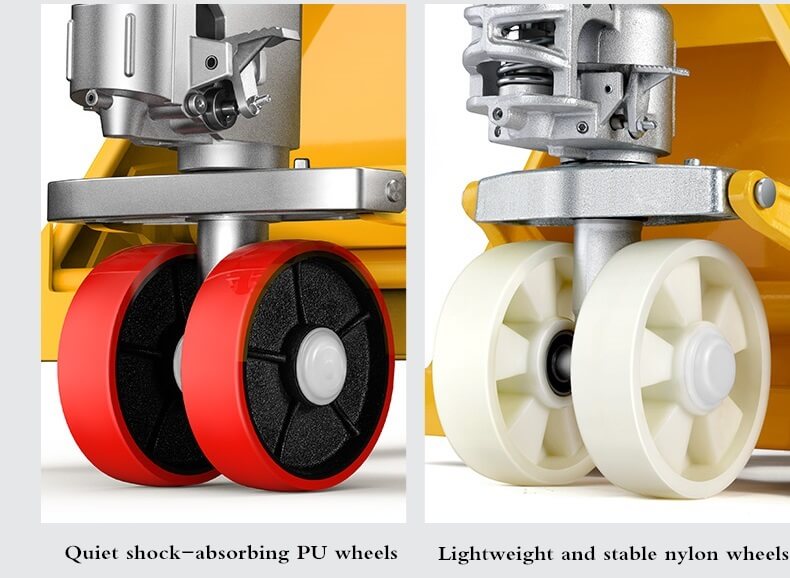

Quiet shock-absorbing PU wheel: wear-resistant without indentation, silent shock absorption, suitable for marble, paint, epoxy floor use
Lightweight and stable nylon wheel: low resistance, light pulling, corrosion resistance, suitable for use on cement floors

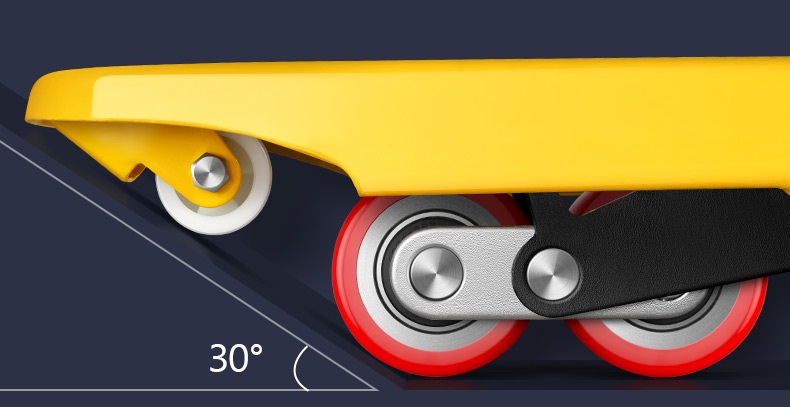

Convenient auxiliary wheel, easy to deal with up and down slopes
When pushing and pulling on a slope within 30°, the auxiliary movement is not easy to touch the ground and run aground, which can save labor and improve work efficiency

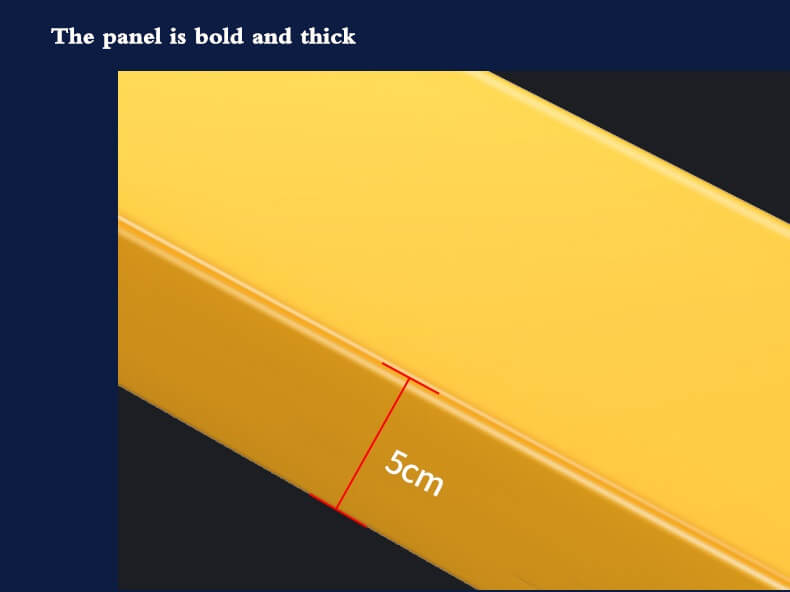

The panel is thicker, the height of the fork side wall of the 3-ton truck is 5cm, the thickness of the fork of the finished truck is ≈ 4mm, and the thickness of the bare steel plate is 3.75mm.

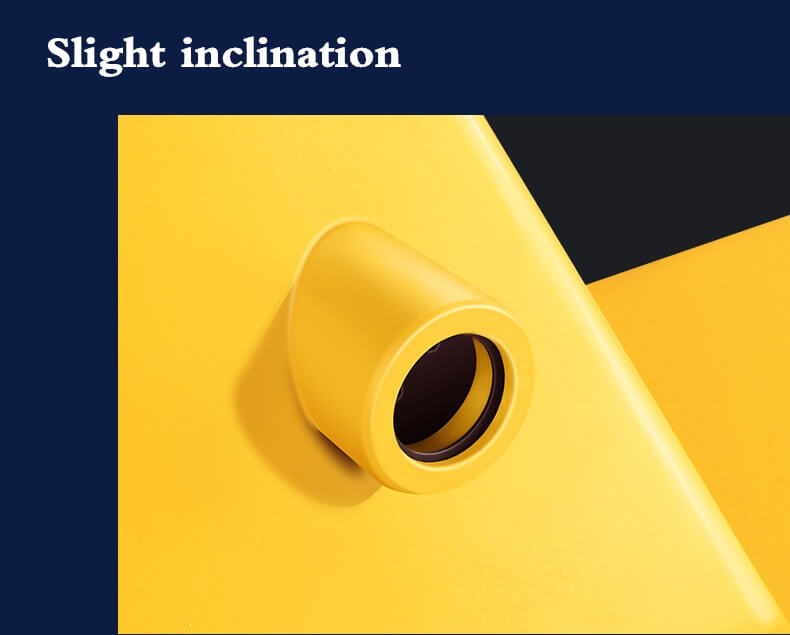

Slight inclination angle, anti-tilt design

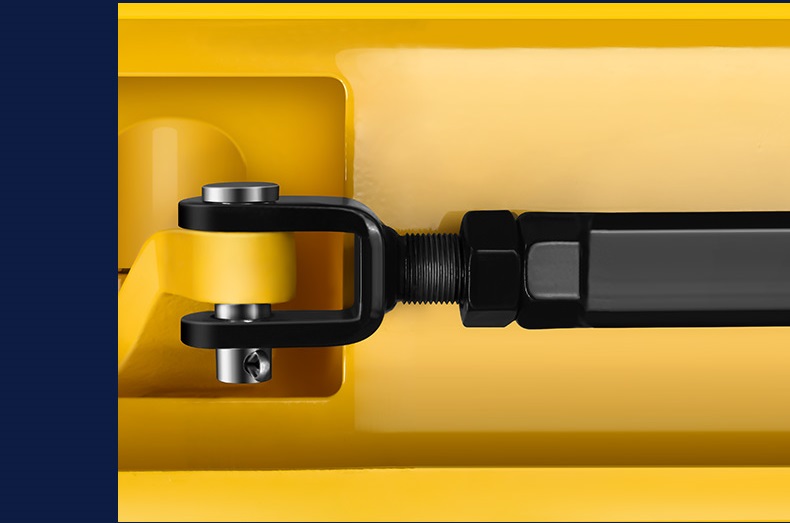

Adjustable push rod for easy fork height adjustment

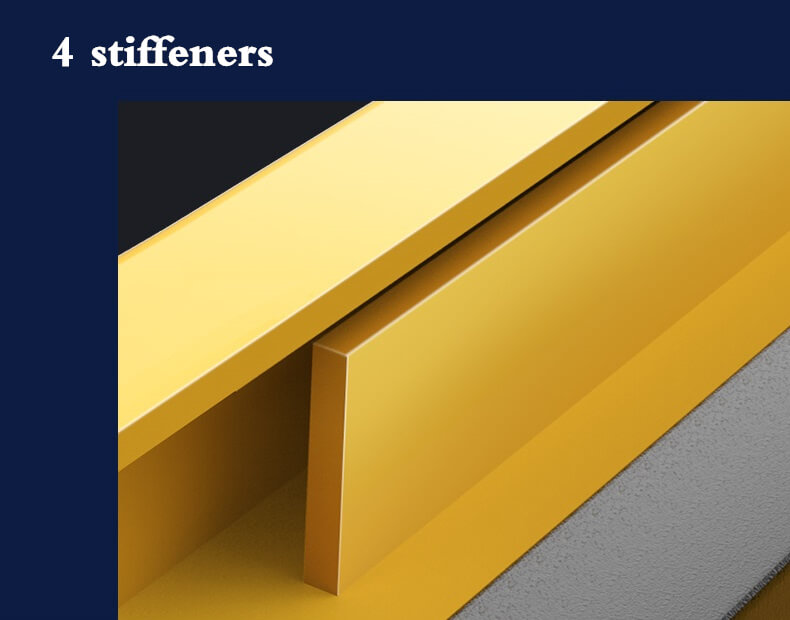

4 reinforcing ribs, not easy to deform, break, stronger bearing capacity
The ergonomically designed handle is comfortable to use, pulls loose and pulls, and the heavy objects drop express can be controlled, making it more secure to use.
Product Paramaters
Type | A | B | C | D |
Rated load (kg) | 2000 | 2500 | 3000 | 3500 |
Fork lowered height (mm) | 80 | 80 | 80 | 80 |
Fork lowered height (mm) | 195 | 195 | 195 | 195 |
Fork size (mm) | 55x160 | 55x160 | 55x160 | 55x160 |

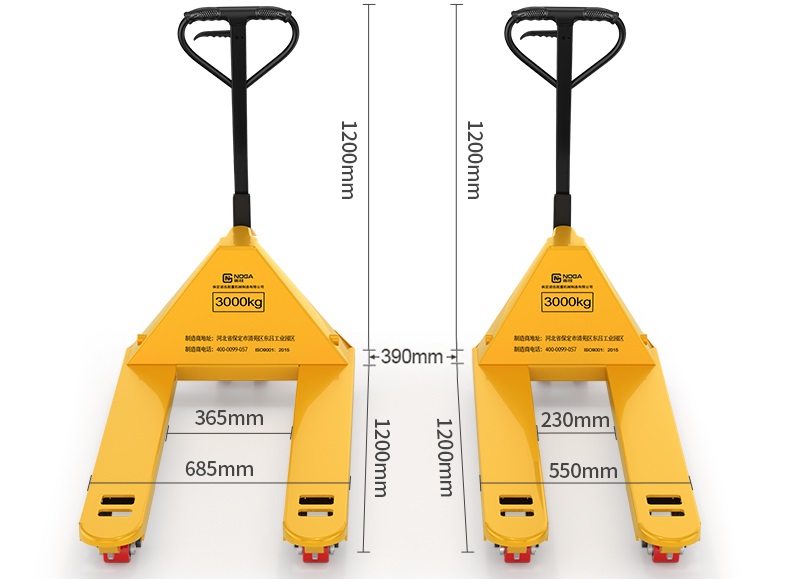

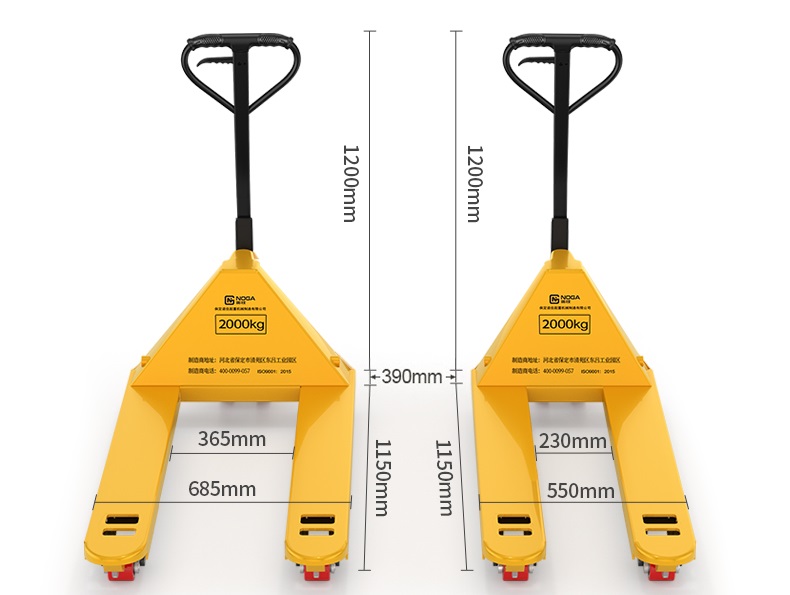

Overall width of fork (mm) | 550/985 | 550/685 | 550/685 | 550/685 |
Fork length (mm) | 1150 | 1150 | 1200 | 1200 |
Bearing wheel (mm) | 70x80 | 70x80 | 70x80 | 70x80 |
Steering wheel (mm) | 50x180 | 50x180 | 50x180 | 50x180 |
Weight (mm) | 62-70 | 63-71 | 65-72 | 66-73 |
Manufacturer | Ant Display Limited |
---|---|
Dimension | 10*10 ft |
Materials | STEEL |
Brand | ANT-DISPLAY |
